The Short Answer: Brass Begins Weakening Around 300°F
For standard brass fittings, the maximum safe operating temperature is approximately 250°F (121°C) before the material begins to weaken significantly . However, this limit depends heavily on the specific alloy, manufacturing method (cast vs. forged), and the presence of seals or O-rings. Some specialized high-temperature brass fittings can operate up to 302°F (150°C) , while naval regulations set limits up to 300°C (572°F) for specific copper-nickel alloys .

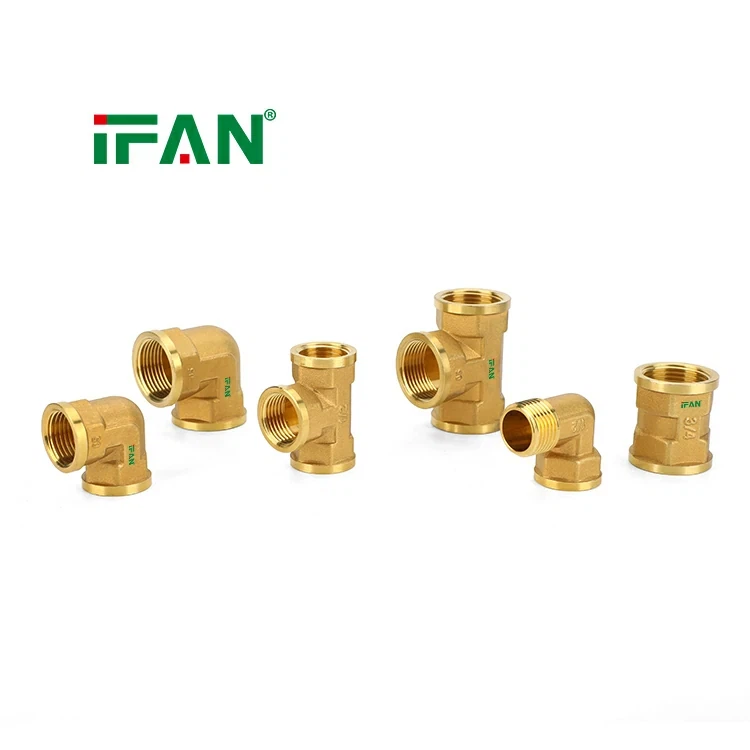

Standard Commercial Brass Fittings: 250°F Limit
Most commercial brass fittings are rated for a maximum temperature of 250°F (121°C) . This rating applies to common applications such as:
Boiler connections and hydronic heating systems
Instrumentation and pneumatic lines
General industrial fluid handling
At this temperature, standard brass maintains its mechanical strength and sealing integrity. Above this threshold, the material begins to soften, and the risk of creep deformation increases. For applications exceeding this temperature, special high-temperature grades or different materials should be considered.
High-Temperature Brass Fittings: Up to 302°F (150°C)
Several manufacturers offer brass fittings specifically designed for higher temperature service. These typically use specialized sealing materials (FKM/Viton instead of NBR) and may employ different brass alloys.
| Series/Brand | Maximum Temperature | Application |
|---|---|---|
| Legris LF3600 | 150°C (302°F) | Chemical, food processing, automation |
| IQS-MSV High Temp | 150°C (302°F) | Pneumatic systems, high-temperature environments |
| SMC KQB2/KQG2 | 150°C (302°F) | One-touch pneumatic fittings |
These high-temperature variants replace standard NBR seals with FKM (Viton) seals, which maintain elasticity at elevated temperatures where NBR would harden and fail. The brass bodies themselves are often nickel-plated for additional corrosion resistance.
Critical Temperature Impact on Brass Strength
The weakening of brass fittings at high temperatures is not sudden but gradual. As temperature increases, the material's yield strength and tensile strength decrease. Naval classification rules provide detailed stress values for copper alloys at various temperatures .
For aluminum brass (a common brass variant), the permissible stress drops significantly at higher temperatures:
At 175°C (347°F): 51.0 N/mm²
At 200°C (392°F): 24.5 N/mm²
This demonstrates that by 200°C, aluminum brass has lost approximately 70% of its strength compared to lower temperatures. While the fitting may not melt or fail immediately, its pressure-holding capacity is severely compromised.
The Role of Seals: The Actual Limiting Component
For many brass fittings, particularly push-to-connect and compression types, the temperature limit is not set by the brass itself but by the elastomeric seals inside the fitting.
| Seal Material | Maximum Temperature | Typical Application |
|---|---|---|
| NBR (Nitrile) | 80°C (176°F) | Standard pneumatic, general purpose |
| FKM (Viton) | 150-200°C (302-392°F) | High-temperature, chemical resistance |
| PTFE | 260°C (500°F) | Extreme high-temperature |
Standard brass fittings with NBR seals are limited to approximately 80°C (176°F), despite the brass itself being capable of higher temperatures . When you see a fitting rated for 150°C, it almost certainly uses FKM seals and is specifically labeled as a "high-temperature version."
Pressure-Temperature Relationship (Derating)
As brass fittings heat up, their maximum working pressure must be reduced. This is called "derating." For example, a fitting rated for 30 bar at room temperature may only be rated for 10-15 bar at 150°C .
The Legris LF3600 series, rated for 150°C, has a maximum working pressure of 30 bar . Lower-quality fittings would require significant derating at this temperature.
In general, for every 10°C above 100°C, the pressure rating of brass should be reduced by approximately 10-15%. Always consult manufacturer-specific derating charts for critical applications.
Melting vs. Weakening: An Important Distinction
Brass fittings do not suddenly fail at 250°F or 300°F. Their melting point is approximately 900°C (1652°F) , far beyond any practical plumbing or pneumatic application. The concern is "weakening" or "softening" of the material.
What happens at elevated temperatures:
The brass alloy becomes more ductile and less rigid
Internal stresses can cause gradual deformation (creep)
Threaded connections may loosen over time
Pressure-holding capacity decreases
For most residential and commercial applications-hot water (60°C/140°F), steam heating (100-120°C/212-248°F)-standard brass fittings are perfectly adequate. Problems arise only when temperatures consistently exceed 150°C (302°F).
Special High-Temperature Brass Fittings (260°C+)
For extreme high-temperature applications approaching 260°C (500°F), specialized fittings are available. SMC's KFG2 series of insert fittings can be used up to 260°C . However, these are not standard brass-they use specialized materials and designs.
At these temperatures, the following must be considered:
The brass itself is near its upper service limit
Only PTFE or metal seals can be used
Thermal expansion differences between components become critical
Thread galling risk increases significantly
For temperatures above 200°C (392°F), stainless steel or steel fittings are generally recommended over brass, as they maintain strength better at high temperatures.
Naval and Marine Regulations: 200°C Limit
Classification society rules for naval ships specify maximum service temperatures for copper alloys :
Copper and aluminum brass: Maximum 200°C (392°F)
Cast bronze valves and fittings: Up to 260°C (500°F)
Copper-nickel alloys: Up to 300°C (572°F)
These regulations reflect rigorous engineering standards and provide a reliable reference for high-temperature applications. The 200°C limit for aluminum brass is widely accepted as the upper bound for continuous service of standard brass alloys.
Practical Examples by Application
| Application | Typical Temperature | Is Standard Brass Suitable? |
|---|---|---|
| Residential hot water | 60°C (140°F) | Yes |
| Hydronic heating | 80-90°C (176-194°F) | Yes |
| Steam heating (low pressure) | 100-120°C (212-248°F) | Marginal - verify rating |
| Boiler connections | Up to 150°C (302°F) | Only high-temperature brass with FKM seals |
| Industrial pneumatic systems | Ambient to 80°C | Yes (standard) |
| Chemical processing | 100-150°C | High-temperature brass only |
| Exhaust gas systems | 200°C+ | Not suitable - use steel or stainless |
Summary: Temperature Limits by Brass Fitting Type
| Fitting Type | Safe Operating Range | Limiting Factor |
|---|---|---|
| Standard Brass (NBR seals) | -20°C to 80°C (-4°F to 176°F) | NBR seal degradation |
| Standard Brass (no seals) | -65°F to 250°F (-53°C to 121°C) | Brass material weakening |
| High-Temp Brass (FKM seals) | -20°C to 150°C (-4°F to 302°F) | FKM seal limits / brass derating |
| Aluminum Brass (naval) | Up to 200°C (392°F) | Material stress reduction |
| Specialized (KFG2 series) | Up to 260°C (500°F) | Special design and materials |
Conclusion: Know Your Application's Temperature
Brass fittings begin to weaken at approximately 250°F (121°C) for standard grades, with specialized high-temperature versions reaching 302°F (150°C). For continuous service above 150°C, consider bronze, copper-nickel alloys, or stainless steel fittings.
The key is matching the fitting to your application:
Standard brass fittings are excellent for residential water, heating, and general pneumatic systems
High-temperature brass fittings with FKM seals are required for 80-150°C applications
For temperatures above 150°C, alternative materials are recommended
Always verify both the brass material rating and the seal material rating. A brass fitting is only as good as its weakest component, and at high temperatures, the seals often fail before the brass itself.
