PEX (cross-linked polyethylene) press fittings offer a reliable and efficient solution for plumbing installations. Proper installation is essential to ensure a secure and leak-free connection. In this article, we'll provide a comprehensive installation guide and best practices for PEX press fittings.
Understanding PEX Press Fittings:

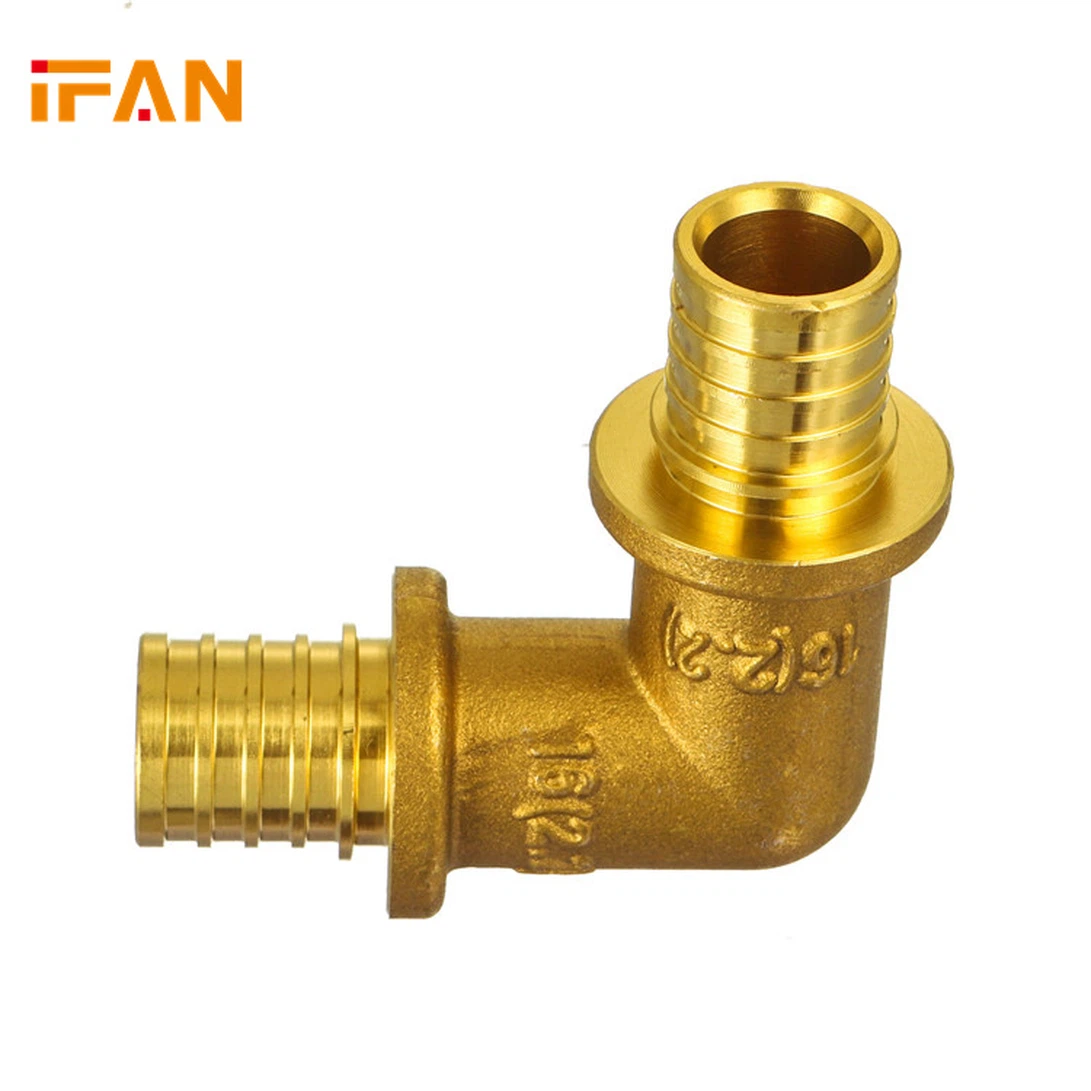

PEX press fittings are designed to create a watertight seal by compressing a metal sleeve (usually made of copper) around the PEX tubing using a press tool. The fittings come in various shapes and sizes, including straight connectors, elbows, tees, and adapters. Understanding the components and anatomy of PEX press fittings is crucial before beginning the installation process.
Selecting the Right Tools and Equipment:
Before starting the installation, gather all the necessary tools and equipment, including a PEX press tool, PEX tubing cutter, deburring tool, and appropriate fittings. Ensure that the press tool is compatible with the size and type of PEX press fittings being used. Using the correct tools will ensure a proper and secure connection.
Preparing the PEX Tubing:
Using a PEX tubing cutter, cut the PEX tubing to the desired length, ensuring a clean, square cut. Remove any burrs or sharp edges from the cut end of the tubing using a deburring tool. Properly preparing the tubing will ensure a tight and secure fit with the press fittings.
Assembling the Press Fittings:
Slide the press fitting onto the end of the PEX tubing, ensuring that it is fully inserted and seated. Repeat this process for each fitting that will be installed. Ensure that the fittings are oriented correctly according to the plumbing layout and connection points.
Using the Press Tool:
Place the jaws of the press tool over the press fitting and tubing, ensuring that they are aligned properly. Apply pressure to the press tool to compress the metal sleeve around the PEX tubing. Follow the manufacturer's guidelines for the appropriate amount of pressure and duration of the press cycle.
Inspecting the Connection:
After pressing the fitting, visually inspect the connection for any signs of leaks or irregularities. Check for proper alignment and seating of the fitting on the tubing. Perform a pressure test on the plumbing system to verify the integrity of the connection and ensure that it is leak-free.
Best Practices for Installation:
Follow these best practices to ensure a successful installation of PEX press fittings:
- Always use PEX tubing and fittings that are compatible with each other.
- Avoid excessive bending or kinking of the PEX tubing, as this can restrict water flow and cause damage to the tubing.
- Use pipe supports or straps to secure the PEX tubing in place and prevent movement or stress on the press fittings.
- Insulate exposed PEX tubing in unheated areas to prevent freezing and potential damage to the fittings.
In conclusion, proper installation of PEX press fittings is essential for ensuring a reliable and leak-free plumbing system. By following this installation guide and adhering to best practices, homeowners and professionals can achieve successful installations with PEX press fittings, providing long-lasting performance and peace of mind.
