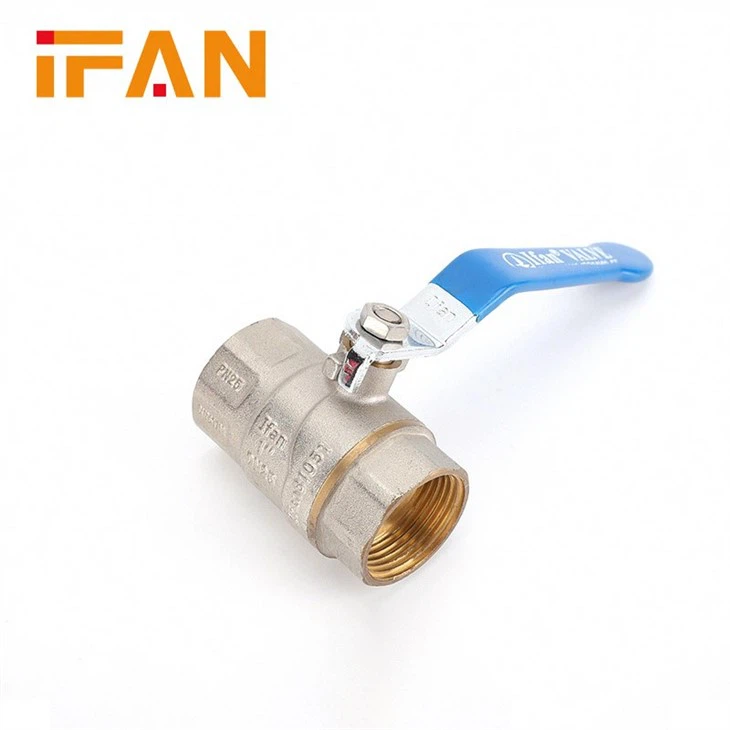

Have A Significant Advantage Brass Ball Valve

Introduction to Brass Ball Valves

A brass ball valve is a type of quarter-turn valve that uses a spherical disc (the ball) to control the flow of water. The ball has a hole through the middle, and when the valve is in the open position, the hole aligns with the flow direction, allowing water to pass through. When the valve is closed, the ball is rotated 90 degrees, and the hole is perpendicular to the flow, effectively stopping the water.

Brass, an alloy of copper and zinc, is a preferred material for these valves due to its excellent mechanical properties and corrosion resistance. Brass ball valves are available in various sizes and configurations, making them suitable for a wide range of applications.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

The sealing structure of the copper ball valve is mainly composed of the ball, the seat and the sealing material. The following is its detailed structure and how to ensure the sealing performance:

Sealing structure composition

• Ball: The ball of the ball valve is a hollow spherical component, which is connected with the valve stem sleeve and rotated through the valve stem. There is a through hole inside the ball, when the valve is opened, the medium can flow smoothly through the hole; When the valve is closed, the surface of the ball is sealed with the seat, thus preventing the flow of the medium.

• Seat: The seat is a key part of the ball seal and is usually made of a corrosion-resistant material such as polytetrafluoroethylene (PTFE). When the valve is closed, the surface of the ball is tightly fitted to the seat to form a sealing surface, thereby preventing media leakage.

• Sealing materials: In addition to the use of corrosion resistant materials for the seat, rubber sealing rings, polytetrafluoroethylene gaskets and other auxiliary sealing materials can be selected according to needs to enhance the sealing performance.

The method to ensure sealing performance

• Excellent material choice: The ball and seat are made of wear-resistant, corrosion-resistant copper alloys, such as 6-6-3 tin bronze and 58-2-2 manganese brass, which maintain stable physical and chemical properties in harsh environments such as high pressure and temperature.

• Precision manufacturing process: In the manufacturing process of the valve, high-precision processing equipment and technology are used to ensure that the geometric size and surface roughness of the ball, seat and other parts meet the design requirements, thereby reducing the risk of leakage of the sealing surface.

• Reasonable sealing structure design: sealing structure is the core part of the valve to ensure sealing performance. The ball valve adopts the elastic sealing structure of the ball and the seat, and realizes the switch control through the rotation of the ball. When the valve is closed, the surface of the ball is closely fitted with the seat to form a reliable seal.

• Selection of suitable sealing materials: according to the characteristics of the medium and the working environment, the selection of high-pressure, corrosion-resistant, high-temperature sealing materials, such as polytetrafluoroethylene (PTFE), etc., to ensure that the valve can maintain good sealing performance in harsh environments such as high pressure and high temperature.

• Strict quality control: In the production process, it is necessary to carry out strict quality control, including the inspection of raw materials, the monitoring of the processing process, the performance testing of the finished product, etc., to ensure that each valve meets the design requirements and can maintain good sealing performance in a variety of environments.

In summary, the copper ball valve through high-quality material selection, precision manufacturing process, reasonable sealing structure design, selection of appropriate sealing materials and strict quality control and other aspects of the measures to ensure its excellent sealing performance.
