Pressure Test Of Floor Heating Pipe

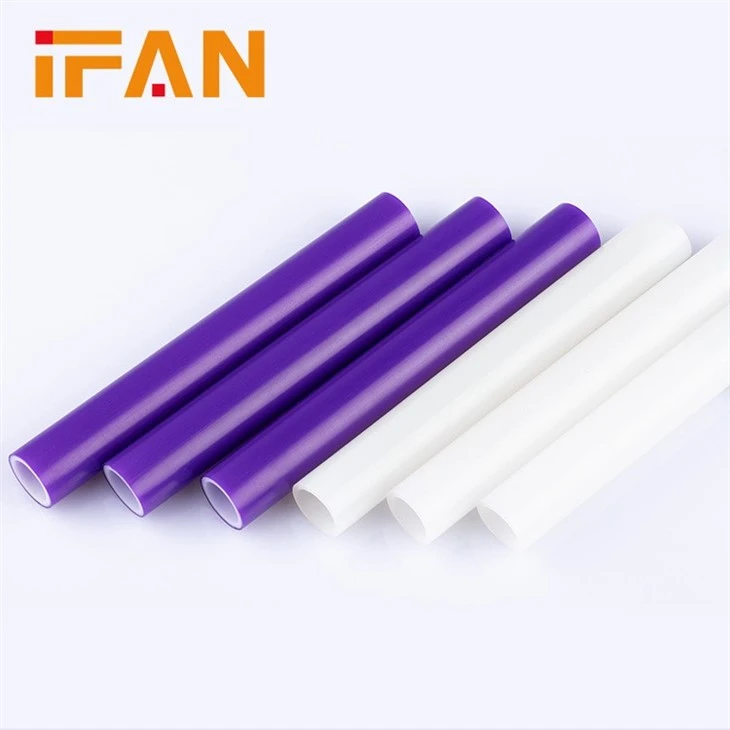

PEX pipes are widely used in various applications such as cold and hot water piping, oil piping, fuel tanks, and chemical piping due to their stability, durability, and resistance to vibration and impact. They also exhibit excellent hydraulic properties, making them a reliable choice for many piping systems.

When the local heating pipe encounters obstacles during the laying process, it is necessary to formulate the corresponding treatment plan according to the nature, location and size of the obstacles. Here are some common treatments and analyses:

Obstacle types and assessment:

Before encountering an obstacle, the nature of the obstacle should be defined, such as whether it is structural or non-structural. Structural obstacles may be beams, columns, walls and other building structures; Non-structural obstacles may be pipes, cables, furniture, etc.

Assess the impact of obstacles on the laying of floor heating pipes, including whether they will affect the direction of the floor heating pipes, whether the design needs to be changed, and whether they will increase the difficulty of construction.

Obstacle treatment scheme:

1. Detour plan: If the obstacle is small or the position is more flexible, you can consider changing the laying path of the floor heating pipe to bypass the obstacle. This method is simple and feasible, but it may need to increase the length of the pipe and the number of elbows, which has a certain impact on the system performance.
2. Crossing scheme: If the obstacle is large or fixed, it is impossible to bypass, you can consider crossing the floor heating pipe under or above the obstacle. This requires the crossing method to be determined according to the nature of the obstacle, which may require the use of professional crossing tools or equipment. The crossing scheme needs to ensure that there is sufficient spacing between the floor heating pipe and the obstacles to avoid mutual interference.
3. Remove or change obstacles: If obstacles can be moved or repositioned, consider removing or repositioning them. For example, moving furniture, changing the direction of pipes, and so on. This approach requires coordination with other construction teams or owners to ensure that there is no impact on other construction or daily life.
4. Add insulation or reflector: If the barrier cannot be removed or changed position, but the floor heating pipe must pass above or below it, consider adding insulation or reflector between the barrier and the floor heating pipe. This reduces heat loss and increases the efficiency of the underfloor heating system.

Note:

When dealing with obstacles, ensure that they do not affect the structure and safety of the building. If it is necessary to change the structure of the building or remove part of the wall, etc., it needs to get the approval and permission of the relevant departments.

When dealing with obstacles, it is necessary to coordinate with other construction teams to ensure construction progress and quality.

After handling obstacles, pressure tests should be carried out on the floor heating pipe to ensure the tightness and safety of the system.

Case study:

For example, when laying the floor heating pipe, a large pipe was encountered, which could not be bypassed or crossed from below. At this time, you can coordinate with the construction unit of the pipeline to locally shift or change the direction of the pipeline, so that the floor heating pipe can be successfully laid.

Another example is coming across some fixed furniture that cannot be moved or changed in position. At this time, you can add a layer of insulation or reflection layer under the furniture to reduce heat loss, and leave enough space between the furniture and the floor heating pipe to avoid mutual interference.

In short, the treatment of obstacles encountered in the laying process of the floor heating pipe needs to develop the corresponding treatment plan according to the specific situation, and ensure that it will not affect the building structure and safety. At the same time, it is necessary to coordinate with other construction teams to ensure the construction progress and quality.
