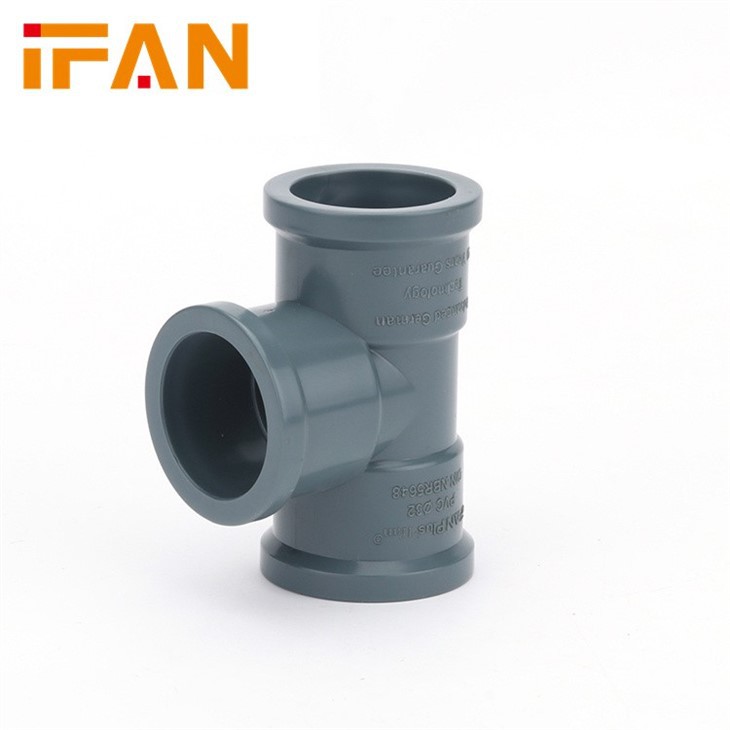

New Design UPVC Fittings

Introduction:

UPVC Pipe fittings, crafted from unplasticized polyvinyl chloride, serve as pivotal connectors in plumbing systems.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

After the installation of UPVC pipe fittings, quality inspection is an important link to ensure the safe and reliable operation of the pipeline system. Here are some of the main quality check steps and points:

Visual inspection

• Check pipes and fittings: First of all, check whether the surface of pipes and fittings is smooth and flat, without cracks, bubbles, depressions and other defects. High-quality UPVC pipe fittings should be uniform in color, usually milky white.
• Joint inspection: Focus on checking whether the pipe joints are tight and there is no leakage. Pay special attention to the sealing of the connection parts such as the socket interface and the flange interface.

Dimensional check

• Measuring pipe size: Use appropriate measuring tools (such as gauges, micrometers, etc.) to check pipe diameter, wall thickness, length and other dimensional parameters to ensure compliance with design requirements and related standards.
• Check pipe specifications: Check whether the model and specification of pipe fittings are consistent with the drawing or design requirements, and avoid mixing pipe fittings of different specifications or models.

Functional testing

• Pressure testing: Pressure testing is performed on the piping system to verify the tightness of the pipe joints and the pressure resistance of the pipe. During the test, the water pressure should be driven to the specified working pressure using a manual or electric pressure pump, and maintained for a certain time (such as 3 minutes) to observe whether there is leakage. If there is leakage, the cause should be identified and dealt with in time.
• Water test: After the pressure test is qualified, the water test is carried out. Open the water source, let the water flow through the pipe system, observe whether the water flow is smooth, there is no blockage or leakage phenomenon.

Other examination

• Check supports and fixtures: Ensure that pipe supports and fixtures are firmly installed and meet design requirements. Check whether the spacing and fixing methods of the supports meet the specifications.
• Check marks and records: Check whether the marks on the pipeline system are clear and accurate, including the flow direction mark, pipe diameter mark, valve mark, etc. At the same time, check the relevant records and materials in the installation process to ensure that the installation process meets the specifications and requirements.

Matters needing attention

• Safety first: When conducting quality inspection, safety operation procedures should be strictly observed to ensure the safety of personnel and equipment.
• Comprehensive and meticulous: Quality inspection should be comprehensive and meticulous, without missing any details and hidden dangers. Problems found should be dealt with in time and recorded for future reference.
• Compliance with standards: Quality inspection shall be carried out in accordance with relevant standards and specifications to ensure the accuracy and reliability of the inspection results.

In summary, the quality inspection of UPVC pipe fittings after installation includes appearance inspection, dimensional inspection, functional testing and other inspections. The safe and reliable operation of the piping system can be ensured through comprehensive and meticulous quality inspection.
