Introduction

CPVC stands for chlorinated polyvinyl chloride. This material offers excellent resistance to heat and corrosion. Many industries favor CPVC due to its durability and versatility.

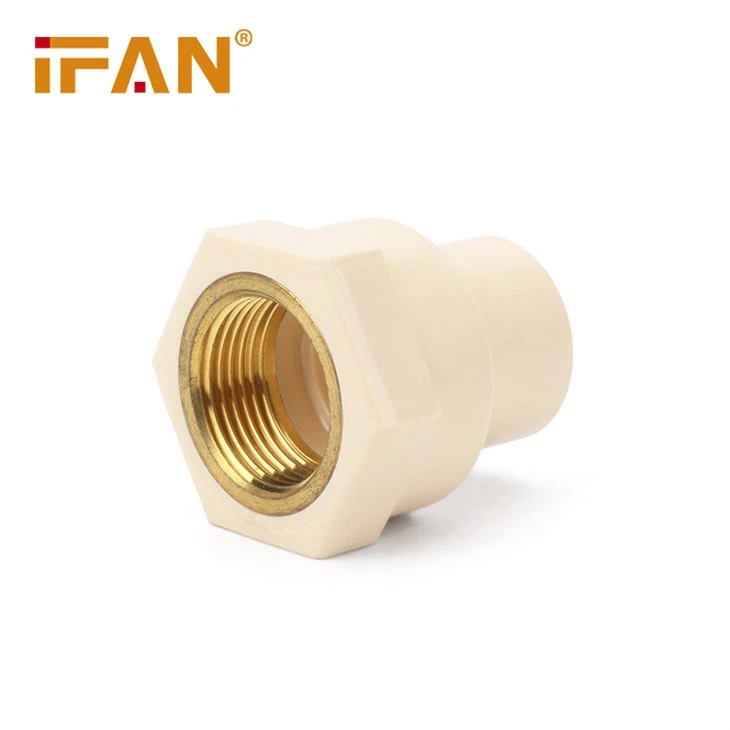

Product Name	CPVC Pipe Fitting
Color	Cream Color
Size	1/2"-2"
Brand	IFAN or Customized
OEM	Support
Sample	Free
Experience	30+Years
Contact Us	Click HERE to contact us now!

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Designing Expansion Compensation Devices for CPVC Pipe Fittings

Introduction to Thermal Expansion in CPVC

Chlorinated Polyvinyl Chloride (CPVC) pipe fittings are widely used in various applications due to their excellent chemical resistance and durability. However, one of the challenges associated with CPVC is thermal expansion, which occurs when the material is exposed to temperature variations. As temperatures rise, CPVC can expand, leading to potential stress on joints and connections. To mitigate these risks, it is essential to design effective expansion compensation devices that accommodate the dimensional changes of CPVC fittings. This article explores the considerations and best practices for designing such devices.

Understanding the Need for Expansion Compensation

The need for expansion compensation arises from the inherent properties of CPVC. The coefficient of linear thermal expansion for CPVC typically ranges from 0.05 to 0.1 mm/m·°C. This means that even small temperature increases can result in significant expansion, particularly in long runs of piping. If the expansion is not properly accommodated, it can lead to joint failures, leaks, or even catastrophic pipe bursts. Designing expansion compensation devices, such as expansion joints or loops, helps absorb the stress caused by thermal movement, ensuring the integrity and reliability of the entire piping system.

Types of Expansion Compensation Devices

Several types of expansion compensation devices can be utilized in CPVC piping systems. Expansion joints are one common solution; they are specifically designed to absorb movement caused by thermal expansion. These joints can be made from flexible materials that allow for movement in multiple directions. Another effective option is the use of expansion loops, which involve creating a loop in the piping system to provide a flexible section that can absorb length changes. Additionally, offset configurations can be designed, allowing pipes to shift without creating undue stress on the system. Choosing the right type of device depends on the specific application, environmental conditions, and the expected temperature range.

Key Design Considerations

When designing expansion compensation devices for CPVC pipe fittings, several key considerations must be taken into account. First, the expected temperature range should be carefully evaluated, as this directly impacts the amount of expansion that must be accommodated. The layout of the piping system is also crucial; for example, longer runs may require more extensive compensation than shorter ones. Furthermore, the selection of materials is critical-devices must be compatible with CPVC to avoid chemical reactions that could compromise their integrity. Additionally, factors such as pressure ratings, installation space, and the potential for movement should be considered to ensure that the designed compensation devices function effectively.

Testing and Maintenance of Expansion Devices

Once expansion compensation devices have been designed and installed, regular testing and maintenance are essential to ensure their effectiveness. Periodic inspections should focus on checking for signs of wear, deformation, or leakage at the compensation devices. Any issues identified during inspections should be addressed promptly to prevent further damage to the piping system. Moreover, maintaining documentation of temperature fluctuations and system performance can provide valuable insights for future adjustments or improvements. By ensuring that expansion compensation devices are functioning correctly, operators can extend the lifespan of CPVC piping systems and enhance their overall reliability in various applications.
