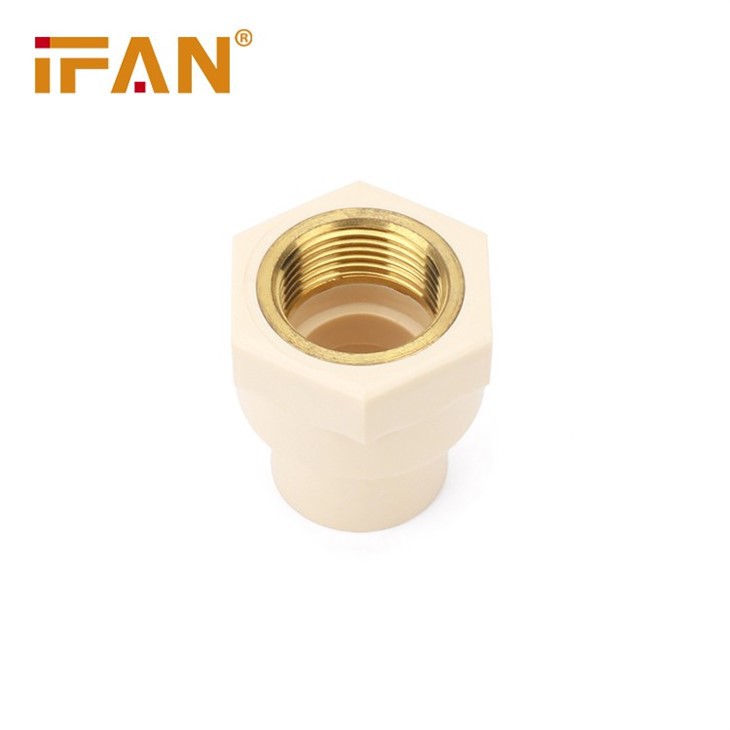

High Pressure Plastic Pipe Connector CPVC PLumbing Fitting

Introduction

CPVC stands for chlorinated polyvinyl chloride. This material offers excellent resistance to heat and corrosion. Many industries favor CPVC due to its durability and versatility.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Production Flow Chart for CPVC Pipe Fittings

Introduction to CPVC Pipe Fittings Manufacturing

Chlorinated Polyvinyl Chloride (CPVC) pipe fittings have become a cornerstone in plumbing and industrial applications due to their superior resistance to heat, chemicals, and corrosion. Understanding the production process is crucial for manufacturers aiming to ensure high-quality products. A well-structured production flow chart serves as a visual guide, illustrating the various stages involved in transforming raw materials into finished CPVC fittings. This article explores the key steps in the production process, highlighting the significance of each stage in ensuring product quality and efficiency.

Raw Material Preparation

The production of CPVC fittings begins with the careful selection and preparation of raw materials. The primary component, polyvinyl chloride (PVC), undergoes a chlorination process to enhance its thermal and chemical properties. The chlorine content typically ranges from 56% to 60% by weight. In this initial stage, additives such as stabilizers, lubricants, and impact modifiers are also blended with the CPVC resin to enhance performance. These materials are accurately measured and mixed to achieve the desired formulation. Quality control checks are essential during this stage to ensure that the right proportions of each ingredient are used, setting the foundation for the final product's quality.

Extrusion and Molding Processes

Once the raw materials are prepared, the next step involves the extrusion and molding processes. In the extrusion process, the blended CPVC mixture is fed into a heated extruder, where it is melted and formed into continuous lengths of pipe. Specialized dies shape the extruded material into the required dimensions. For pipe fittings, the injection molding technique is often employed. Here, molten CPVC is injected into molds to create specific shapes, such as elbows, tees, and couplings. Both processes require precise temperature and pressure controls to ensure that the CPVC flows smoothly and fills the molds completely, resulting in uniform and defect-free fittings.

Cooling and Quality Control

After the extrusion or molding, the CPVC fittings undergo a cooling process to solidify and stabilize their shapes. Cooling can be achieved using air or water baths, depending on the production setup. This step is crucial as it ensures that the fittings retain their desired dimensions and mechanical properties. Following cooling, quality control inspections are performed. These checks may include visual inspections for surface defects, dimensional accuracy measurements, and tests for mechanical properties such as tensile strength and impact resistance. This stage is vital to ensure that only fittings meeting industry standards are released for distribution.

Packaging and Distribution

The final stage in the production flow chart involves packaging and distribution. Once the CPVC fittings have passed quality control, they are carefully packaged to prevent damage during transportation. Packaging often includes labeling with product specifications and compliance information to ensure traceability. The packaged fittings are then stored or shipped to distributors and retailers, ready for installation in various applications. Efficient inventory management and distribution strategies are essential to ensure that products reach customers promptly. By adhering to this structured production flow, manufacturers can enhance efficiency, minimize waste, and ensure that high-quality CPVC pipe fittings are available in the market.
