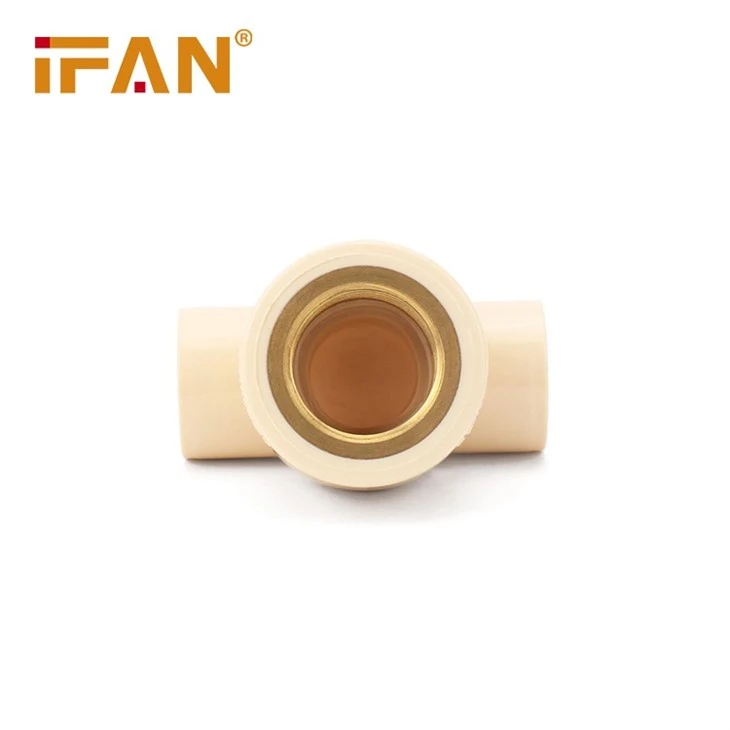

Good Quality CPVC Plumbing Fitting

Introduction

CPVC stands for chlorinated polyvinyl chloride. This material offers excellent resistance to heat and corrosion. Many industries favor CPVC due to its durability and versatility.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Understanding the Stress-Strain Curve of CPVC Pipe Fittings

Introduction to Stress-Strain Analysis

The stress-strain curve is a fundamental tool used in materials science to characterize the mechanical behavior of materials, including Chlorinated Polyvinyl Chloride (CPVC) pipe fittings. This curve illustrates the relationship between the applied stress (force per unit area) and the resulting strain (deformation) that occurs in the material. Understanding this relationship is essential for engineers and designers as it provides insights into how materials behave under different loading conditions. For CPVC, the stress-strain curve reveals critical information regarding its elastic limit, yield strength, tensile strength, and ductility, all of which are vital for assessing its suitability in various applications.

Key Phases of the Stress-Strain Curve

The stress-strain curve of CPVC can typically be divided into several key phases: the elastic region, the yield point, the plastic region, and the fracture point. In the elastic region, the material behaves elastically, meaning it will return to its original shape upon the removal of the applied load. The slope of this portion of the curve represents the material's modulus of elasticity. At the yield point, the material begins to deform plastically, marking the transition from elastic to permanent deformation. Following this, the plastic region shows a gradual increase in strain with less proportionate increase in stress, indicating that the material can undergo significant deformation before failure occurs. Finally, the fracture point indicates where the material ultimately fails.

Characteristics of CPVC in the Stress-Strain Curve

CPVC exhibits distinct characteristics in its stress-strain curve compared to other materials like metals or thermoplastics. Typically, CPVC has a relatively high elastic modulus, indicating it is a stiff material. However, the yield strength of CPVC is lower than that of many metals, which means that it can be more susceptible to deformation under stress. The plastic region of CPVC is also relatively short, indicating limited ductility. This is crucial for applications where flexibility and resilience are necessary. By examining the stress-strain curve, manufacturers can identify optimal conditions for processing and application, ensuring that the final product meets performance expectations.

Importance of the Stress-Strain Curve in Design

Understanding the stress-strain curve of CPVC is vital for engineers when designing systems that incorporate these materials. The curve allows for the prediction of how CPVC will perform under various loads, including pressure and temperature variations. For instance, knowing the yield strength helps in determining safe operating conditions, thereby reducing the risk of failure in pressure piping systems. Furthermore, this information assists in material selection when multiple options are available, ensuring that the chosen material meets the mechanical demands of the application. The stress-strain curve ultimately serves as a critical guide for ensuring the reliability and safety of CPVC installations.

Future Directions in Stress-Strain Research for CPVC

As material science advances, future research will likely focus on enhancing the understanding of the stress-strain behavior of CPVC under different environmental conditions and loading scenarios. Innovations may include exploring new formulations or additives that improve the mechanical properties of CPVC, thereby altering its stress-strain characteristics for specific applications. Additionally, research could delve into the effects of aging, temperature variations, and chemical exposure on the stress-strain curve of CPVC, providing deeper insights into its long-term performance. By continuing to study the stress-strain relationship, the industry can develop improved CPVC products that meet the evolving demands of modern engineering and construction.
